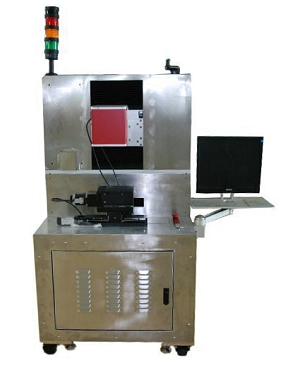

DSWseries

Loading...
Tel:
027-6538-1823  027-6538-1623
E-mail:
info@roclaser.com
Consulting
main feature:

Equipment output energy stability: with high precision energy feedback, can accurately control the pulse energy, to ensure consistent output energy.

Wide range of process parameters: laser single pulse energy and pulse width adjustable to meet the needs of different welding products.

Excellent performance: better than the traditional light pump laser welding welding beam quality, can ensure that the welding effect is beautiful.

High degree of automation: external signal control and visual automatic alignment function, in the pipeline operation can effectively ensure the welding accuracy.



设备型号

DSW20

波  长

1064nm

平均功率

20W

最大单脉冲能量

≥10J

脉冲宽度

0.2~10ms 连续可调

脉冲重复频率

0~20Hz  连续可调

脉冲能量不稳定性

<±2%

最小聚焦光斑直径

0.1mm

参考焊接熔深

0.1~0.4mm(低碳刚或不锈钢)

定位精度

0.01mm

环境要求

10~35ºC

绝缘电阻

接地电阻100Ω或更低

电压范围

单相AC220V±10%

最大输入电流

5A

整机功率

500VA

制冷输入功率

自然风冷




主要特点：



设备输出能量稳定：具有高精度能量反馈，可精度控制脉冲能量，保证输出能量的一致性。



工艺参数可调范围广：激光单脉冲能量和脉宽可调，满足对不同焊接产品需求。



性能优良：具有优于传统的灯泵激光熔接焊的光束质量，可以保证焊接效果美观。



自动化程度高：有外部信号控制和视觉自动对位功能，在流水线作业时可有效保证焊接精度。
