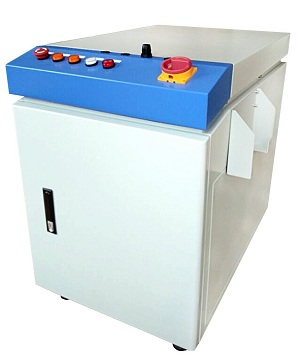

QCWseries

Loading...
Tel:
027-6538-1823  027-6538-1623
E-mail:
info@roclaser.com
Consulting
main feature:

A wide range of process parameters: up to 32 sets of process parameters set, the waveform can be set to meet the needs of different welding products.

Full-featured: according to different welding needs of the waveform can be arbitrarily called, and at the same time can increase the progressive fade out and other useful features.

The whole machine adopts all-digital control: the whole machine adopts the imported master chip to control and control the whole machine and the power supply, which greatly improves the control precision and the scalability of the equipment.

Performance advantages: the use of imported lasers, beam quality, performance and stability, photoelectric conversion efficiency, power consumption, the use of forced air-cooled, small size, with maintenance-free advantages.





设备型号

QCW150FC1

波  长

1064nm

平均功率

150W

最大单脉冲能量

≥15J

脉冲宽度

0.1~50ms 连续可调

脉冲重复频率

0~200Hz  连续可调

脉冲能量不稳定性

<±2%

传输光纤芯径

0.2~0.4mm

光纤长度

3m、5m

最小聚焦光斑直径

0.2mm

参考焊接熔深

0.1~2mm(低碳刚或不锈钢)

环境要求

10~35ºC

绝缘电阻

接地电阻100Ω或更低

电压范围

单相AC220V±10%

最大输入电流

20A

整机功率

2KVA

制冷输入功率

自然风冷




主要特点：



工艺参数范围广泛：多达32组工艺参数设定，波形可任意设置，满足对不同焊接产品需求。



功能齐全：根据不同焊接需求波形可以任意调用，并同时可以增加渐进渐出等实用功能。



整机采用全数字化控制：整机采用进口主控芯片进行整机以及电源的管理与控制，较大程度上提高了控制精度与设备的可扩展性。



性能优势：采用进口激光器，光束质量好，性能稳定，光电转换效率高，功耗小，采用强制风冷，体积小，具有免维护的优势。
