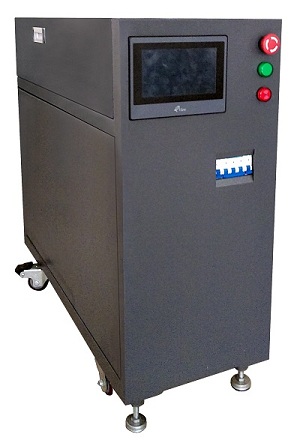

FCWBseries_FCWBseries_Wuhan roc laser automation equipment Co., Ltd.

main feature:

Equipment output energy stability: with energy negative feedback power supply, real-time correction of the output energy size, to ensure the consistency of output energy.

A wide range of process parameters: up to 32 sets of process parameters set, the waveform can be set to meet the needs of different welding products.

Full-featured: with the host computer real-time feedback output waveform, according to different welding needs of the waveform can be any call, and at the same time have progressive and other practical functions.

Smaller size: Compared to the same level of power equipment in the industry, due to the use of all-digital control power, so that it can have a smaller device size, customers can save more space.

The whole machine adopts all-digital control: the whole machine adopts the imported master chip to control and control the whole machine and the power supply, which greatly improves the control precision and the scalability of the equipment.

设备型号	FCWB200FC1	FCWB400FC1	FCWB450FC1
激光工作物质	Nd3+:YAG
波长	1064nm
平均功率	200W	400W	450W
最大单脉冲能量（谐振腔输出处）	≥60J	≥80J	≥80J
脉冲宽度	0.1~25ms 连续可调
脉冲重复频率	0~100Hz 连续可调
脉冲能量不稳定性	<±2%
传输光纤芯径	0.2~0.6mm
光纤长度	3m、5m
最小聚焦光斑直径	0.2mm
参考焊接熔深	0.1~2mm (低碳刚或不锈钢)	0.1~2mm (低碳刚或不锈钢)	0.1~3mm (低碳刚或不锈钢)
环境要求	10~35ºC
绝缘电阻	接地电阻100Ω或更低
电压范围	三相AC380V±10%
制冷方式	外接冷水机	外接冷水机	外接冷水机

主要特点：

设备输出能量稳定：带有能量负反馈功能的电源，实时校正输出能量大小，保证输出能量的一致性。

工艺参数范围广泛：多达32组工艺参数设定，波形可任意设置，满足对不同焊接产品需求。

功能齐全：拥有上位机实时反馈输出波形，根据不同焊接需求波形可以任意调用，并同时拥有渐进渐出等实用功能。

更小尺寸：与行业内同等功率等级设备相比较，由于采用了全数字化控制电源，使其能够拥有更小设备尺寸，能为客户节省更多场地空间。

整机采用全数字化控制：整机采用进口主控芯片进行整机以及电源的管理与控制，较大程度上提高了控制精度与设备的可扩展性。
