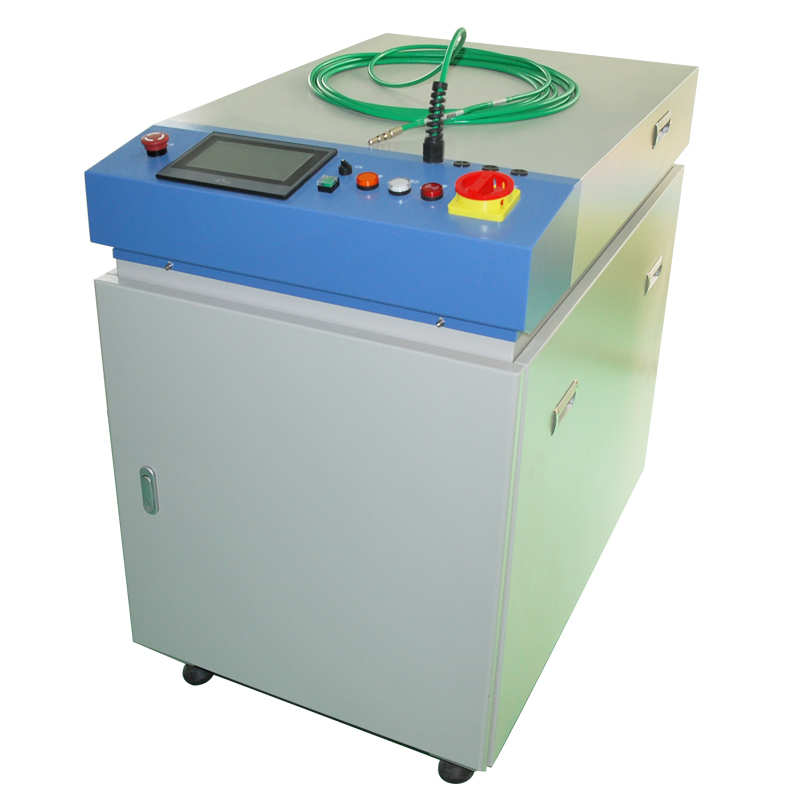

FCWseries_FCWseries_Wuhan roc laser automation equipment Co., Ltd.

Equipment output energy stability:

With energy negative feedback function of the power supply, real-time correction of the output energy size, to ensure consistent output energy.

Wide range of process parameters:

Up to 32 sets of process parameters set, the waveform can be set to meet the needs of different welding products.

full functioning:

With the host computer real-time feedback output waveform, according to different welding needs of the waveform can be arbitrarily called, and at the same time have progressive and other practical functions.

Machine with full digital control:

The whole machine adopts the imported master chip to carry on the whole machine as well as the power management and the control, has greatly improved the control precision and the equipment expansibility.

Stable performance:

The use of internal and external dual-cycle cooling system, to better ensure the stability of equipment, technology is mature, low failure rate.

设备型号	FCW75FC1	FCW150FC1	FCW300FC1
激光工作物质	Nd3+:YAG
波长	1064nm
平均功率	75W	150W	300W
最大单脉冲能量（谐振腔输出处）	≥40J	≥60J	≥80J
脉冲宽度	0.1~25ms 连续可调
脉冲重复频率	0~100Hz 连续可调
脉冲能量不稳定性	<±2%
传输光纤芯径	0.2~0.6mm
光纤长度	3m、5m
最小聚焦光斑直径	0.2mm
参考焊接熔深	0.1~2mm (低碳刚或不锈钢)	0.1~2mm (低碳刚或不锈钢)	0.1~3mm (低碳刚或不锈钢)
环境要求	10~35ºC
绝缘电阻	接地电阻100Ω或更低
电压范围	三相AC380V±10%
制冷方式	内置冷水机	外接冷水机	外接冷水机

主要特点：

设备输出能量稳定：带有能量负反馈功能的电源，实时校正输出能量大小，保证输出能量的一致性。

工艺参数范围广泛：多达32组工艺参数设定，波形可任意设置，满足对不同焊接产品需求。

功能齐全：拥有上位机实时反馈输出波形，根据不同焊接需求波形可以任意调用，并同时拥有渐进渐出等实用功能。

整机采用全数字化控制：整机采用进口主控芯片进行整机以及电源的管理与控制，较大程度上提高了控制精度与设备的可扩展性。

性能稳定：采用内外双循环冷却系统，更好的确保设备的稳定性，技术成熟，故障率低。
